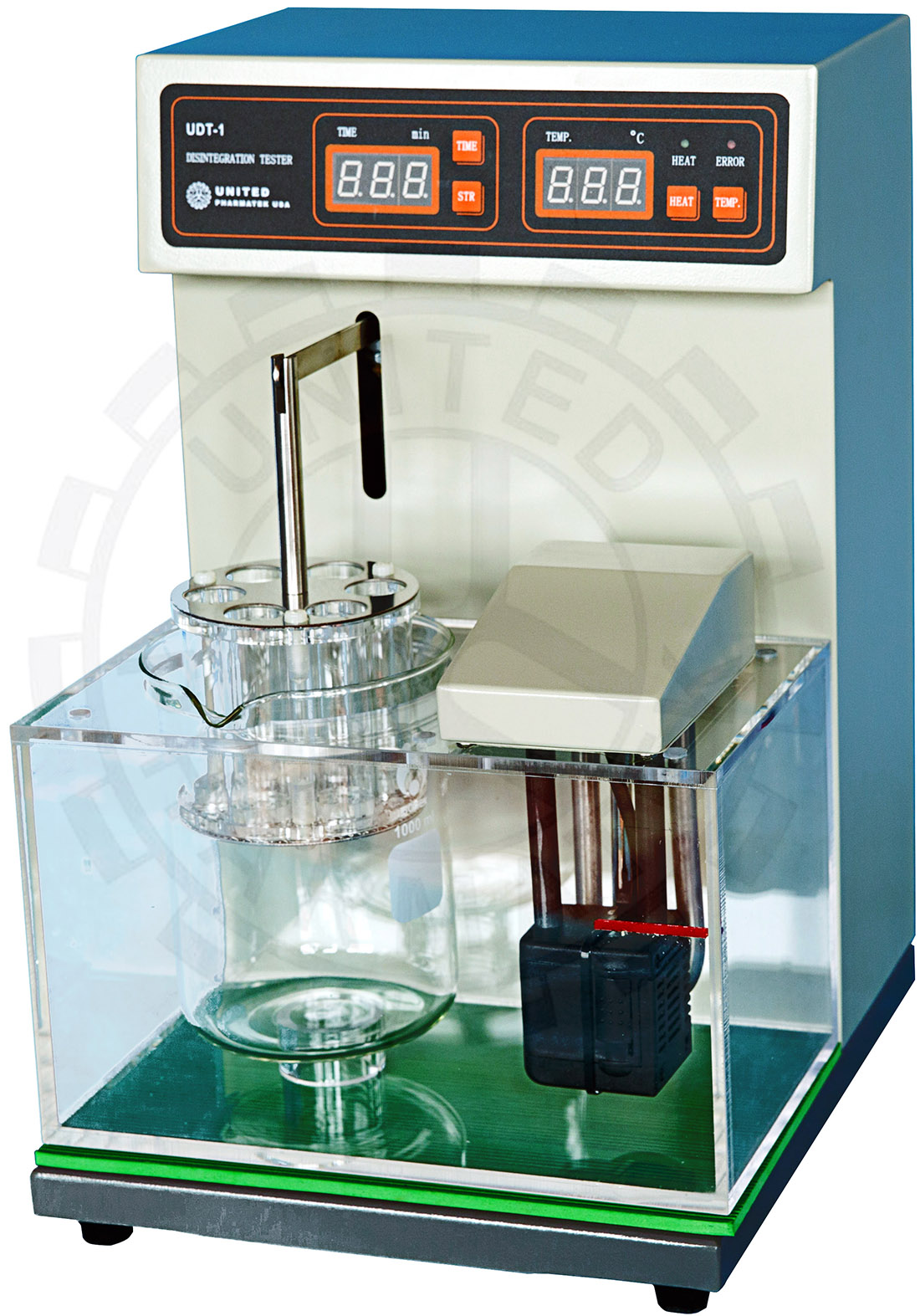

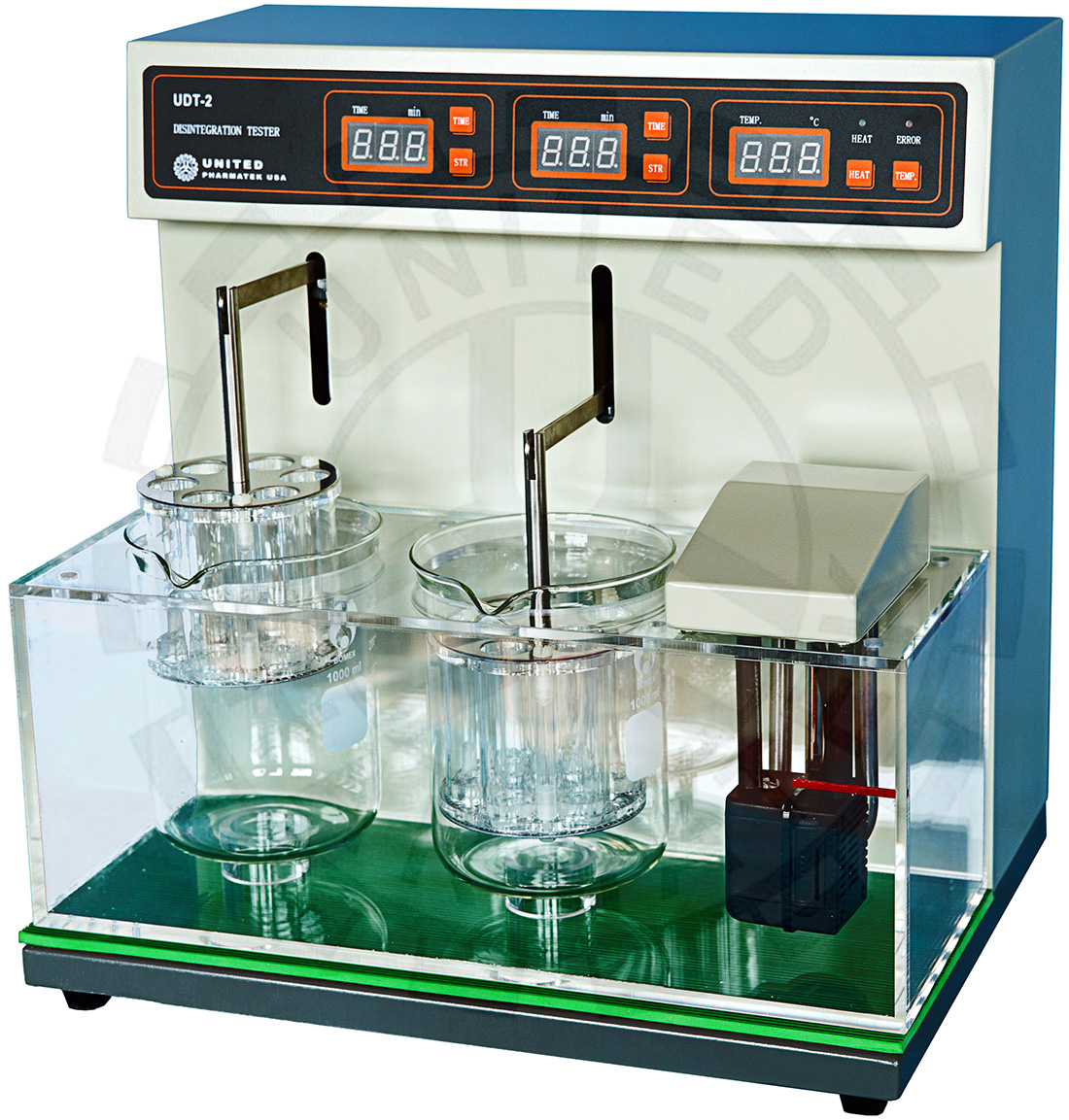

Disintegration Test Apparatus
Functions
| # | Model | UDT-1 | UDT-2 | UDT-3 |
|---|---|---|---|---|
| 1 | Nacelle Baskets | 1 | 2 | 3 |
| 2 | Volume of Beaker | 1000 ml | 1000 ml | 1000 ml |
| 3 | Nacelle Stroke Frequency | 29 ~ 32/min | 29 ~ 32/min | 29 ~ 32/min |
| 4 | Nacelle Stroke Distance | 55 ± 1 mm | 55 ± 1 mm | 55 ± 1 mm |
| 5 | Temp. Range | Ambient to +45 °C | Ambient to +45 °C | Ambient to +45 °C |
| 6 | Automatic Temp. Accuracy | ± 0.5 °C | ± 0.5 °C | ± 0.5 °C |
| 7 | Heater Power | 500W | 500W | 500W |
| 8 | Continuous Work | > 24 hours | > 24 hours | > 24 hours |
| 9 | Dimensions | 260 x 300 x420 mm | 400 x 300 x 420 mm | 560 x 300 420 mm |
| 10 | Net Weight | 11 kg (24lbs) | 16 kg (35lbs) | 22 kg (49lbs) |
| 11 | Power | 110V/220V, 50/60Hz, Single Phase, 600W | 110V/220V, 50/60Hz, Single Phase, 600W | 110V/220V, 50/60Hz, Single Phase, 600W |
